Open Width Compactor (Sanforizing machine, Preshrinking machine)

2017-07-04 17:58:01   Scource:Dezhou Deguan TextileMachinery Co.,Ltd.    Click:
\
 Introduction
The Open Width Compactor machine is used for open width cotton fabric pre-shrinking process.At the beginning of overfeed, the cotton fiber will be processed by steaming to increase the humidity and plasticity. Then the fabric will be widened and pre-shrinked in order to reduce shrinkage and get a good soft feature.
Some fabric could be used directly after drying machine processing, and you can get a stable size,qualified shrinkage and soft effect. If the fabric couldn't reach the standard,you can repeat the processing step and obtain satisfactory result.
Based on different fabric width, we can provide the following machine models:DGLS-2200mm/2400mm(standard)/2600 mm
Based on different heat sources, our machine adopt 3 heat methods: Steam, Electricity, Conduct Oil.
Our Open Width Compactor machine is mainly used for cotton and other natural fibers,
***The machine can NOT be used for synthetic fabrics.

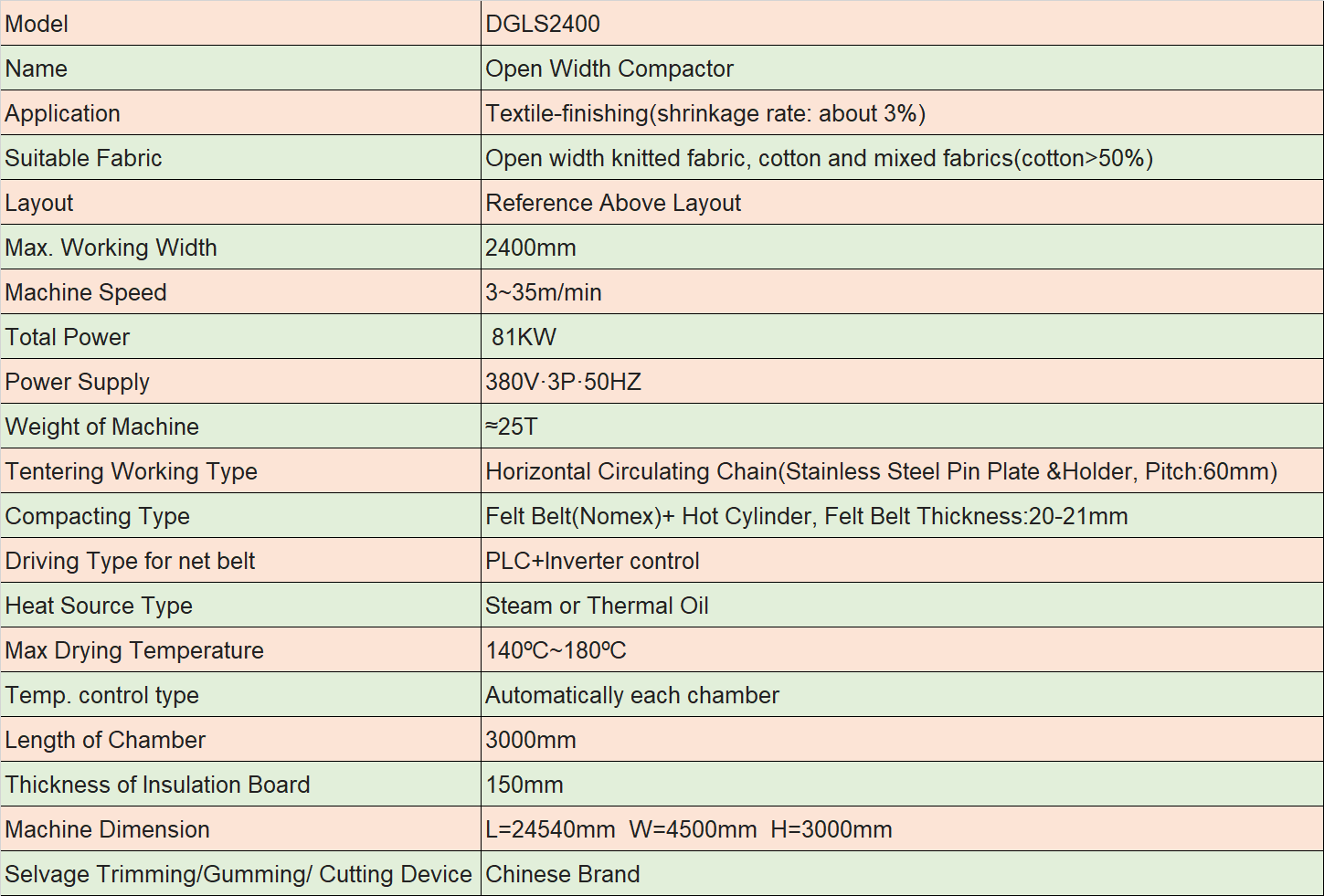

Model DGLS2400
Name Open Width Compactor
Application Textile-finishing(shrinkage rate: about 3%)
Suitable Fabric Open width knitted fabric, cotton and mixed fabrics(cotton>50%)
*The machine can not be used for synthetic fabrics.

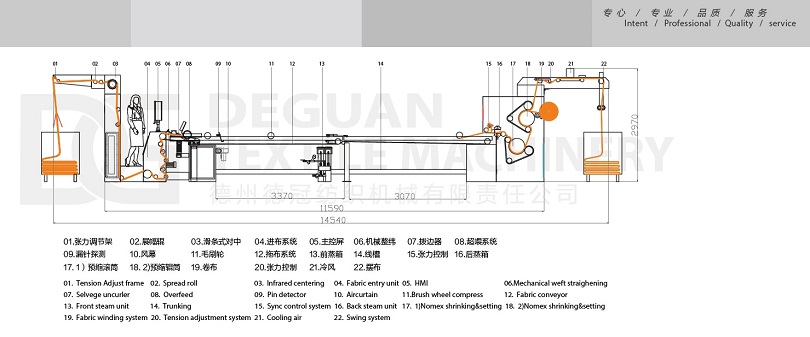

Layout Reference Above Layout
Max. Working Width 2400mm
Machine Speed 3~35m/min
Chamber Nos 3 Sets
Power Supply 380V·3P·50HZ
Weight of Machine ≈25T
Tentering Working Type Horizontal Circulating Chain(Stainless Steel Pin Plate &Holder, Pitch:60mm)
Compacting Type Felt Belt(Nomex)+ Hot Cylinder, Felt Belt Thickness:20-21mm
Driving Type for net belt PLC+Inverter control
Heat Source Type Steam or Electricity
Max Drying Temperature 140ºC~180ºC
Temp. control type Automatically each chamber
Length of Chamber 3000mm
Thickness of Insulation Board 150mm
Machine Dimension L=24540mm  W=4500mm  H=3000mm
Selvage Trimming/Gumming/ Cutting Device Chinese Brand


Advantage:
We possess the upgrade and design ability with our professional technical team, your customized design could be changed into drawing.
With advanced technology and best quality, we make sure that you can get satisfied products based on our pleasant cooperation.

\
