Heat Setting Stenter (Stenter Machine)

2017-07-04 17:30:46   Scource:Dezhou Deguan TextileMachinery Co.,Ltd.    Click:
The Heat Setting Stenter Machine is used for cotton/chemical fiber/mixed knitted woven fabric in open width status.

According to the width size of the fabric, we can offer the following models with different normal work width:
DGLD2400/2600/2800,which are popular sales according to customer's usage.

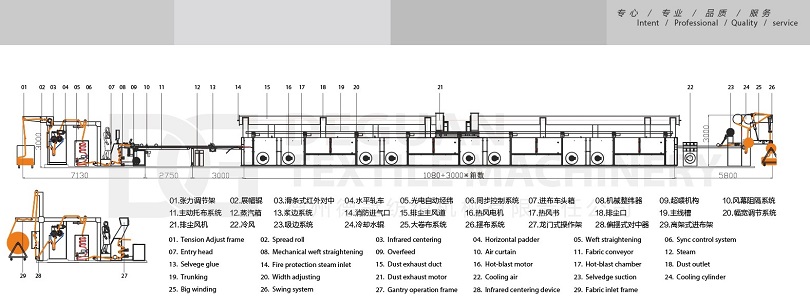

The machine is equipped with horizontal rollers, single padder, mechanic weft straightener. All parts and components are applied some famous brand in order to keep excellent quality.

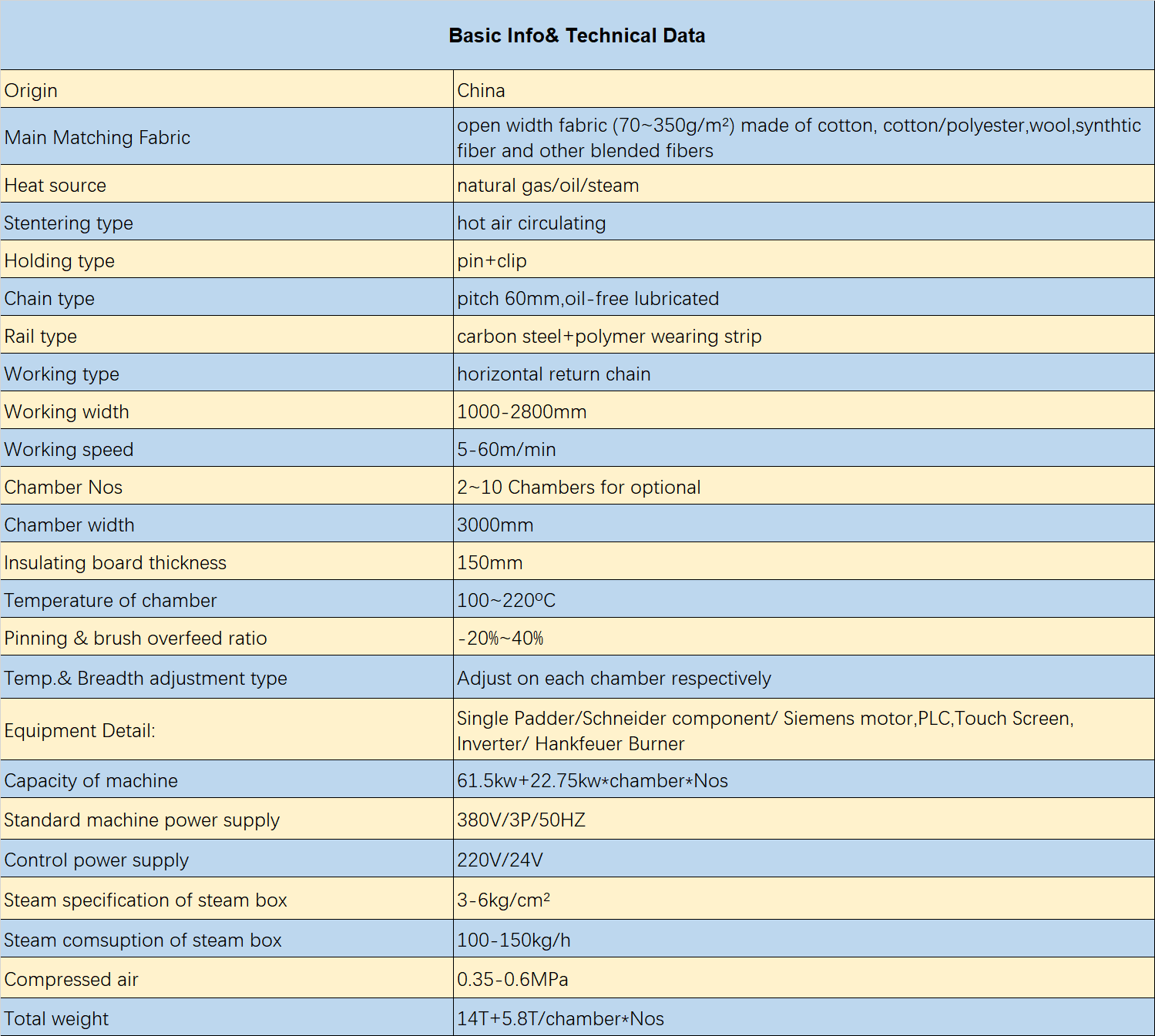

The specification of Stenter Machine
Origin China
Year of manufacture 2020
Main Matching Fabric  open width fabric (70~350g/m²) made of cotton, cotton/polyester,wool,synthtic fiber and
other blended fibers
Heat source natural gas/oil/steam
Stentering type hot air circulating
Holding type pin+clip
Chain type pitch 60mm,oil-free lubricated
Rail type carbon steel+polymer wearing strip
Working type horizontal return chain
Working width 1000-3600mm
Working speed 5-60m/min
Chamber Nos 2-12
Chamber width 3000mm
Insulating board thickness 150mm
Temperature of chamber 100~220ºC
Pinning & brush overfeed ratio -20%~40%
Temp.& Breadth adjustment type Adjust on each chamber respectively
Equipment Detail:     Single Padder/Schneider component/ Siemens motor,PLC,Touch Screen, Inverter/ Hankfeuer Burner
Capacity of machine 61.5kw+22.75kw*chamber*Nos
Standard machine power supply 380V/3P/50HZ
Control power supply 220V/24V
Steam specification of steam box 3-6kg/cm²
Steam comsuption of steam box 100-150kg/h
Compressed air  0.35-0.6MPa
Total weight 14T+5.8T/chamber*Nos

  • We possess the upgrade and design ability with our professional technical team, your customized design could be changed into drawing.
  • With advanced technology and best quality, we make sure that you can get satisfied products based on our pleasant cooperation.
